100W 12V/24V CV high-end dimmable switch LED power supply

● PF test under AC 220V and full loading
● Brand Name:YSD
● Input voltage:100-277Vac
● Output voltage:12V,24V
● Output current:8.3a/4.17a
● Output power range:60w 100w
● Output Frequency:50-60Hz
● Power factor:PF>0.95/230Vac,at full load
● Efficiency:93%
● Dimming interface:triac/0-10V/1-10V/10V PWM/resistance DIM
● Dimming range:0~100%,dimming depth:Max.1%
● Certificates:CE,BIS,ROHS
● Material:Aluminum
● Waterproof grade:IP40
● Production Place:Shenzhen,CN
● Warranty period:5 years
● Downloaddownload-pdf-icon
Description

Indoor Triac 0-10v dimmable 5 IN 1 dimmable driver 12v 100w dimming led power supply






Quick Details

Lighting solutions service: Lighting and circuitry design,Project Installation
Range of application: LED strip lights,Fog-proof lights,Downlights,Grille lights,Track lights,Ceiling lights
Model Number: YSD-100WUGP-12TL/YSD-100WUGP-24TL
Product Name: Led Driver(Switching Power Supply)
Size: 273*43*23mm
Weight: 350g
Color: White
Supply Ability: 5000 Case Cases per Day
Fast delivery: sample within 1-2 days,wholesales 3-7 days,OEM 7-10 days
Shipping: DHL·UPS·TNT·EMS·International Airmail

Support Express:

Sea freight·Land freight·Air freight
Payment:

PayPal·HSBC·Western Union

*YSD 5 in 1 Dimmable series products can match with manydimmers, high compatibility and continuous smooth & flicker-free with dimmers(Leading edge(Triac),Trailing edge(ELV)phase-cut)

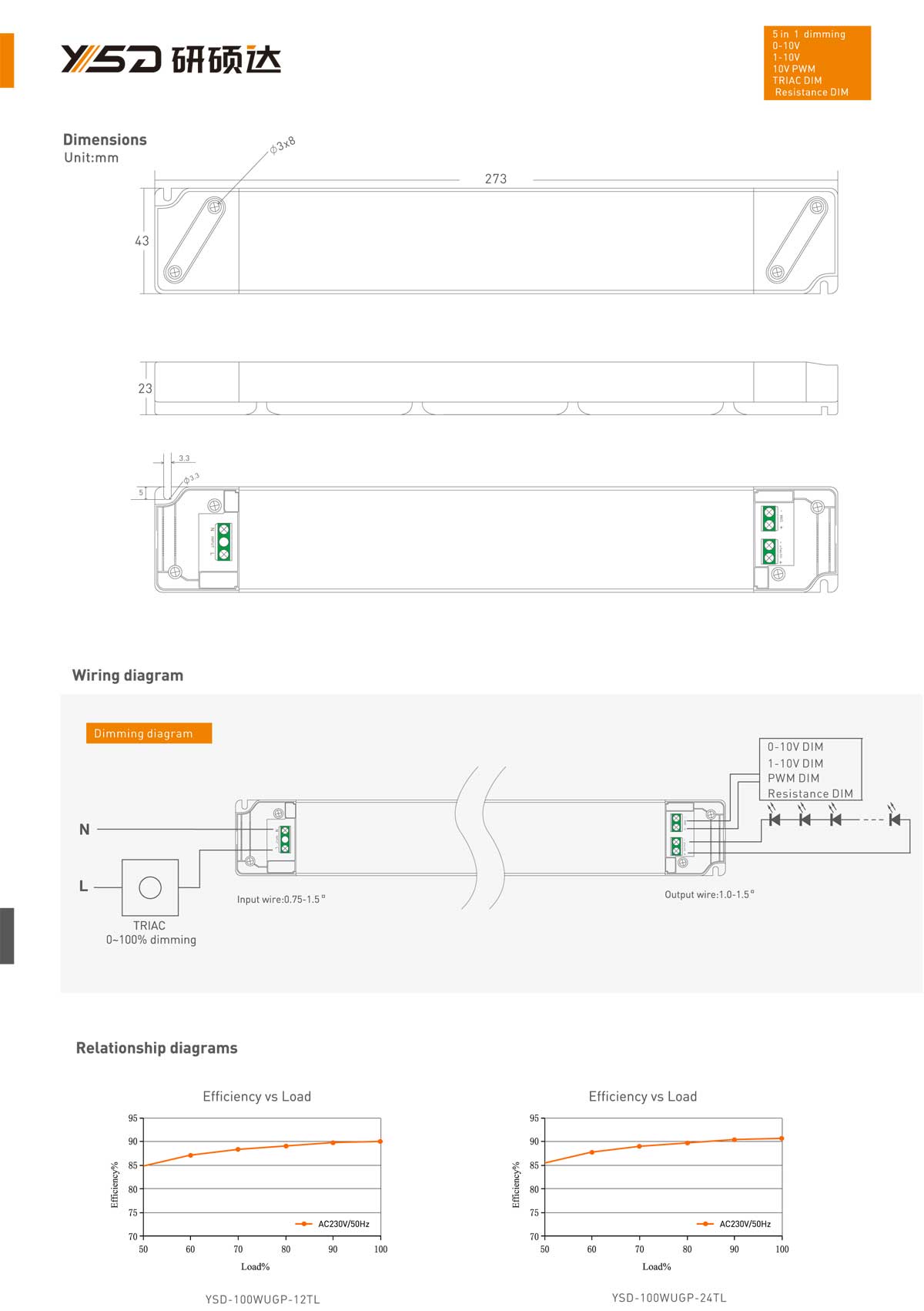

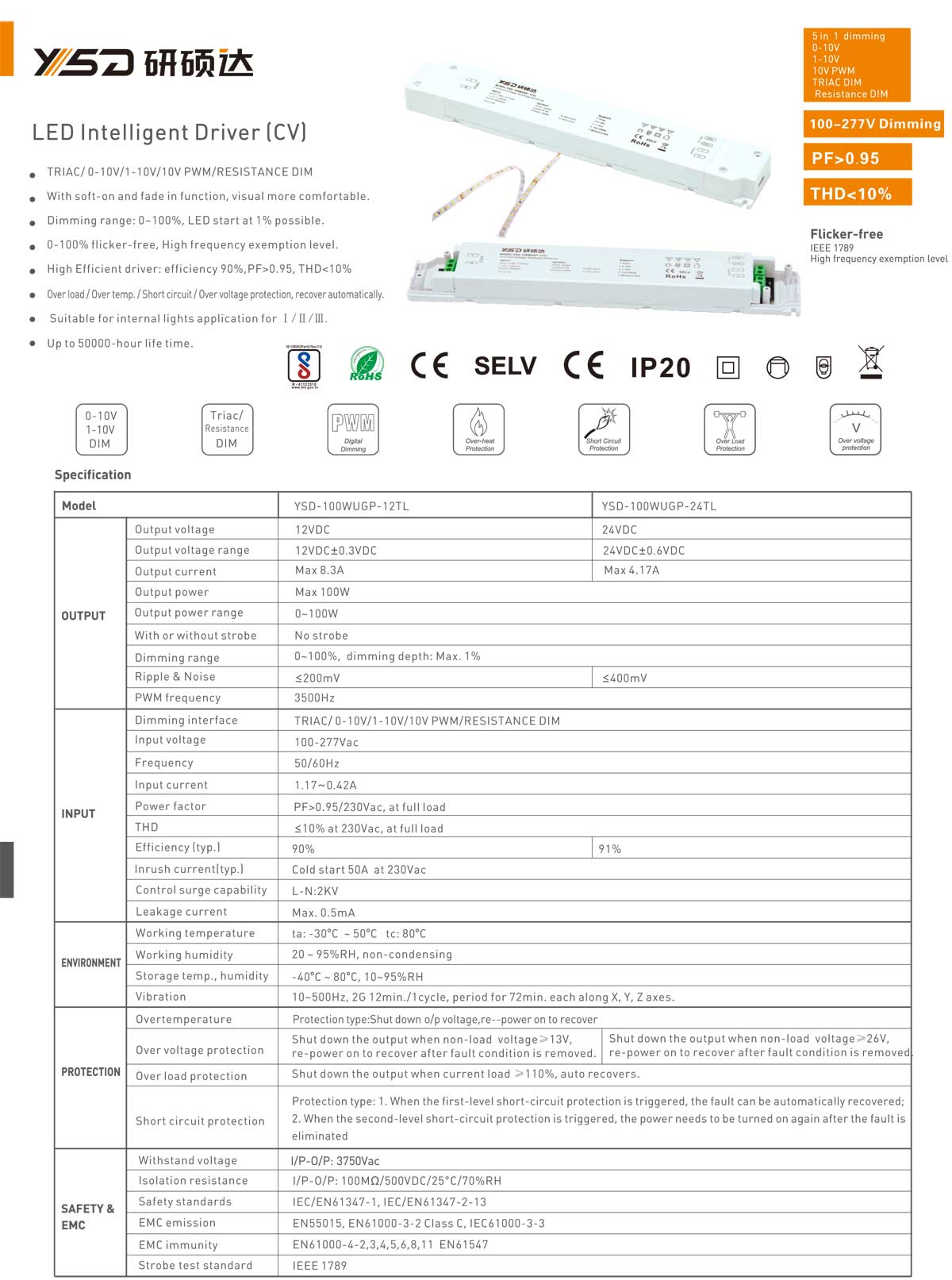

Indoor Triac 0-10v dimmable 5 IN 1 dimmable driver 12v 100w dimming led power supply specification 01Indoor Triac 0-10v dimmable 5 IN 1 dimmable driver 12v 100w dimming led power supply specification 02
